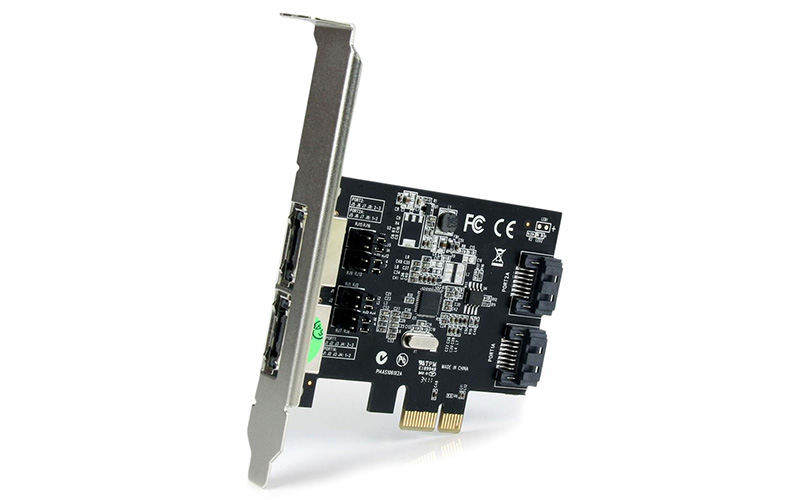

SATA II RAID PCI Card, 2 External eSATA and 2 Internal SATA Ports

Get two external eSATA and two internal RAID-ready SATA ports for your geared up SATA hard drives. The controller card covers Striping (RAID 0), Mirroring (RAID 1), Mirrored Striping (RAID 1+0) and Parity Striping (RAID 5). Serial ATA PCI Card can work as a non-RAID controller with 4 separate drives!



• SIL3124 controller supports up to 4 SATA drives

• 4 port chipset: 2 external eSATA and 2 internal SATA ports

• Conforms with Serial ATA II specification (the extension of SATA 1.0a Revision 1.1)

• Conforms with Gen2i, Gen2m SATA II Electrical specification Revision 1.0

• Backward compatibility with SATA 1.0

• PCI 32-bit, 33/66 MHz host interface

• In-built PCI DMA engines

• Extra durable metal shielded Serial ATA connectors

• Support for Serial ATA data rates up to 3Gb/sec (300 MB/s)

• Support for Native Command Queue (NCQ), First Party DMA, Port Multiplier

• Support for RAID 0 (striping), RAID 1(mirroring) and RAID 0+1 (striping and mirroring)

• Can be used as non-RAID controller for up to 4 separate drives

• Support for SATA I and SATA II hard drives of any capacity

What's In the box:


• CD with drivers and RAID Software

• Quick Installation Guide

SD-SATA2-2E2I controller card specifications:

• 2 eSATA and 2 internal SATA connectors

• PCI Bus: 32-bit, 33/66 MHz

• Support for SATA data rates up to 3Gb/sec (300 MB/s)

• FIFO: 256 Bytes per channel

• Support for first-party DMA commands for Native Command Queueing

• Support for SATA Port Multipliers

• Support for SATA I and SATA II hard drives of different capacities

• In-built PCI DMA engines

• Support for Spread Spectrum Receiver

• Support for RAID 0, RAID 1, RAID 1+0, RAID 5

• Adds up to 4 individual drives as a non-RAID controller

• Support for Hot Swapping of the drives

Minimum System Requirements

• Pentium II 400MHz or faster desktop computer with available PCI slot

• Windows 2000, Windows XP, Windows Server 2003, Windows XP 64-bit or Vista
